Compact vertical structure
The suspended layout is designed to reduce occupied production-line space.
立式编带飞达 · Taped-component feeder
Vertical Taped-Component Feeder
A compact vertical feeder that advances taped electronic components and integrates feeding, lead cutting, forming, and optional bending for automated insertion equipment.
Taped
Feeding method
5×5×5–20×20×30mm
Supported component size
1S
Feeding speed / cycle time
±0.5mm
Feeding accuracy
Product overview
Vertical taped-component feeding and lead preparation
The Winseason vertical taped-component feeder combines material advance, lead preparation, and positioning in one narrow assembly.
Its vertical suspended structure reduces line-space demand. A stepper motor, synchronous belt, and photoelectric sensor provide closed-loop feeding control, while product changeover requires replacing only a small number of molds.
01
Taped-component feeding
02
Integrated lead preparation
03
Closed-loop positioning
04
Optional lead bending
Applicable components
Component types listed for this feeder
Supported format or size: 5×5×5mm-20×20×30mm (length × width × height)
01
Electrolytic capacitors
02
Terminals
03
Box capacitors
04
Similar taped components
Similar components and any required lead-forming tooling remain subject to engineering evaluation.
Key features
Integrated feeding and lead preparation in a narrow footprint
02
Integrated processing
Feeding, lead cutting, forming, and optional bending are combined in one feeder.
03
Closed-loop control
A stepper motor, synchronous belt, and photoelectric sensor control material advance and positioning.
04
Changeover by mold replacement
Product changeover requires replacing only a small number of molds.
Technical specifications
Official specification-table values
The values below follow the specification table in the approved product data report.
Component
- Applicable materials
- Electrolytic capacitors, terminals, box capacitors, and similar components
- Component size
- 5×5×5mm-20×20×30mm (length × width × height)
Machine
- Machine dimensions
- 760×68×109mm (length × width × height)
- Machine weight
- 2Kg
Feeding
- Feeding method
- Taped-component feeding
- Positioning
- Photoelectric sensor and positioning block, with support for other fixing structures
- Feeding drive
- Stepper motor
- Feeding channel
- Single feeding channel
Electrical and pneumatic
- Power requirements
- DC24V
- Air pressure
- 0.4-0.6Mpa
Control
- Operation
- Buttons and display
- Host connector
- 8-pin, φ16mm aviation plug
- Communication
- Supports I/O communication
- Optional configuration
- Lead bending
Performance
- Feeding speed / cycle time
- 1S
- Feeding accuracy
- ±0.5mm
Working principle
How the vertical taped-component feeder works
01
Load taped components
The feeder receives components in taped format.
02
Advance the tape
A stepper motor and synchronous belt move the material through the feeder.
03
Position the component
A photoelectric sensor and positioning block control the feed position.
04
Prepare for insertion
The feeder cuts and forms leads, with optional bending where required.
Product image

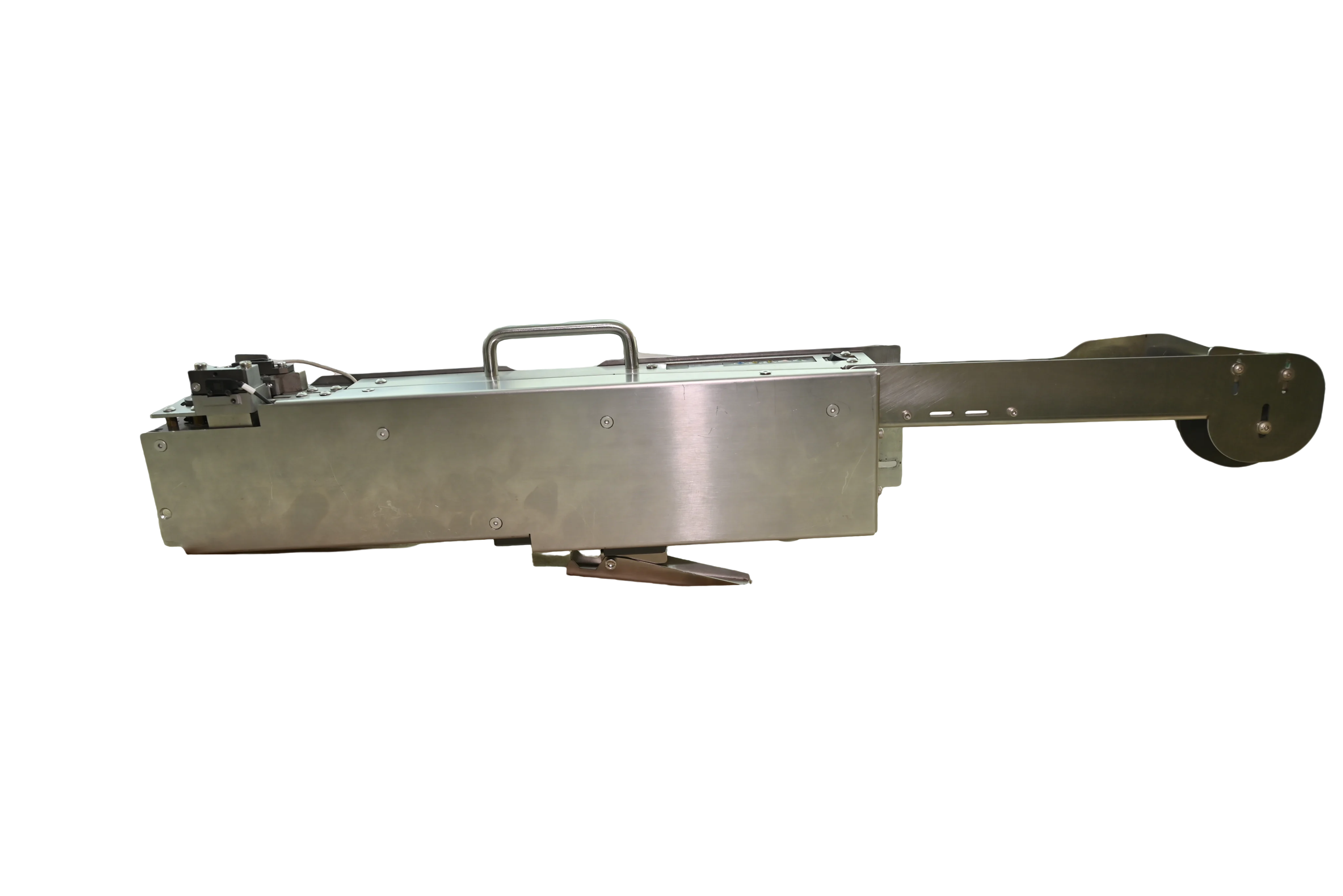

Complete vertical taped-component feeder
The full feeder remains visible in the authentic high-resolution product image extracted from slide 5 of the Winseason feeder presentation.
Typical applications
Typical taped-component feeding applications
01
Electrolytic capacitors
Taped electrolytic capacitor feeding and lead preparation for downstream insertion.
Discuss this application02
Terminals
Controlled feeding and positioning for taped terminal components within the listed size range.
Discuss this application03
Box capacitors
Taped box-capacitor feeding with product-specific mold evaluation.
Discuss this applicationIntegration / communication
Controls and production-line integration
The feeder supports I/O communication through an 8-pin, φ16mm aviation plug. Final signal mapping, fixing structure, molds, and optional lead bending should be confirmed for the target insertion machine.
DC24V
Power requirements
0.4-0.6Mpa
Air pressure
8-pin, φ16mm
Aviation connector
I/O
Communication mode
Buttons + display
Operation
Related products
Related feeder systems
Compare other Winseason feeder formats using the same verified product-page system.

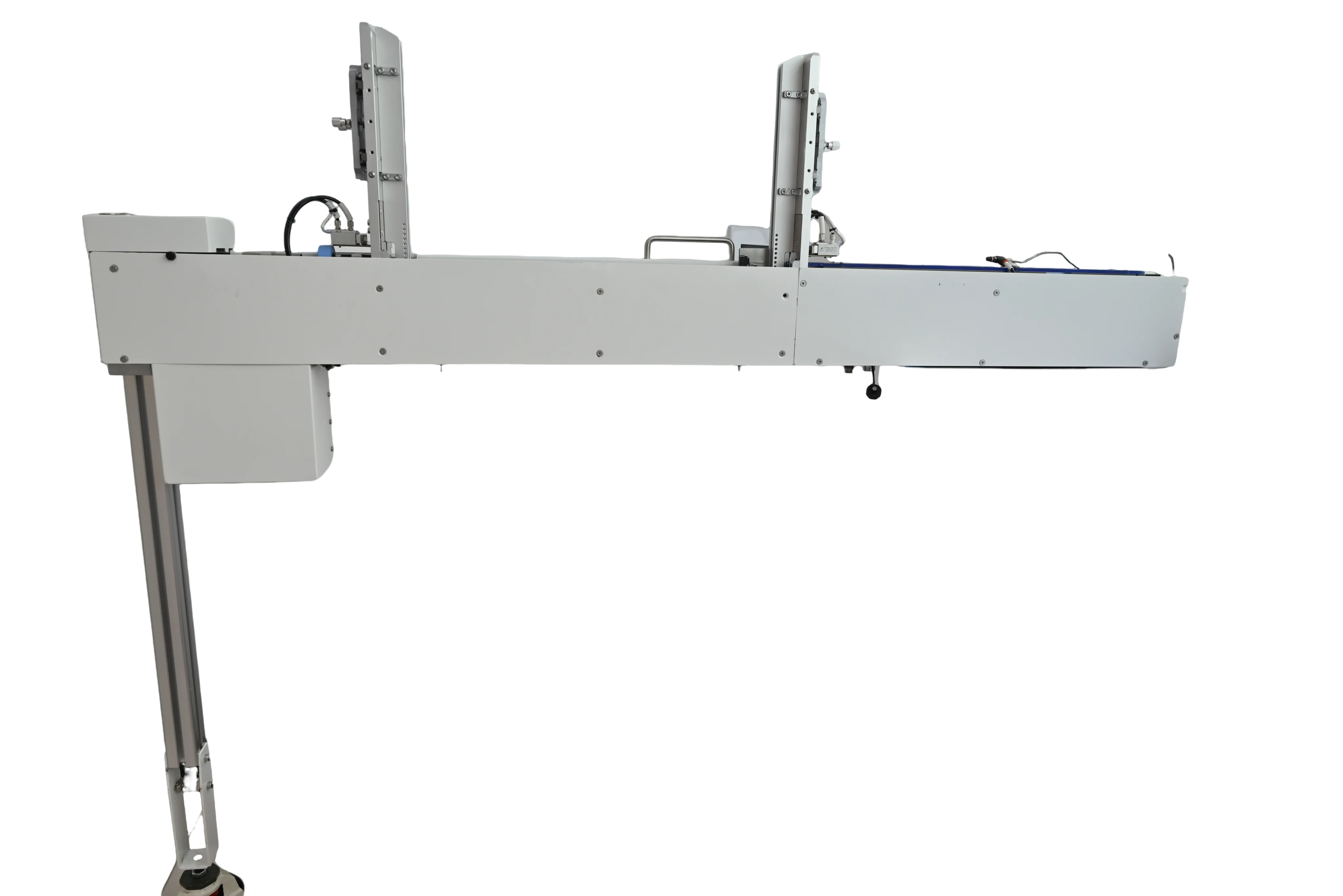

Tube Feeder
The Winseason tube feeder combines a multi-tube magazine, adjustable guide, and pushing mechanism for components supplied in tubes.
Explore Tube Feeder

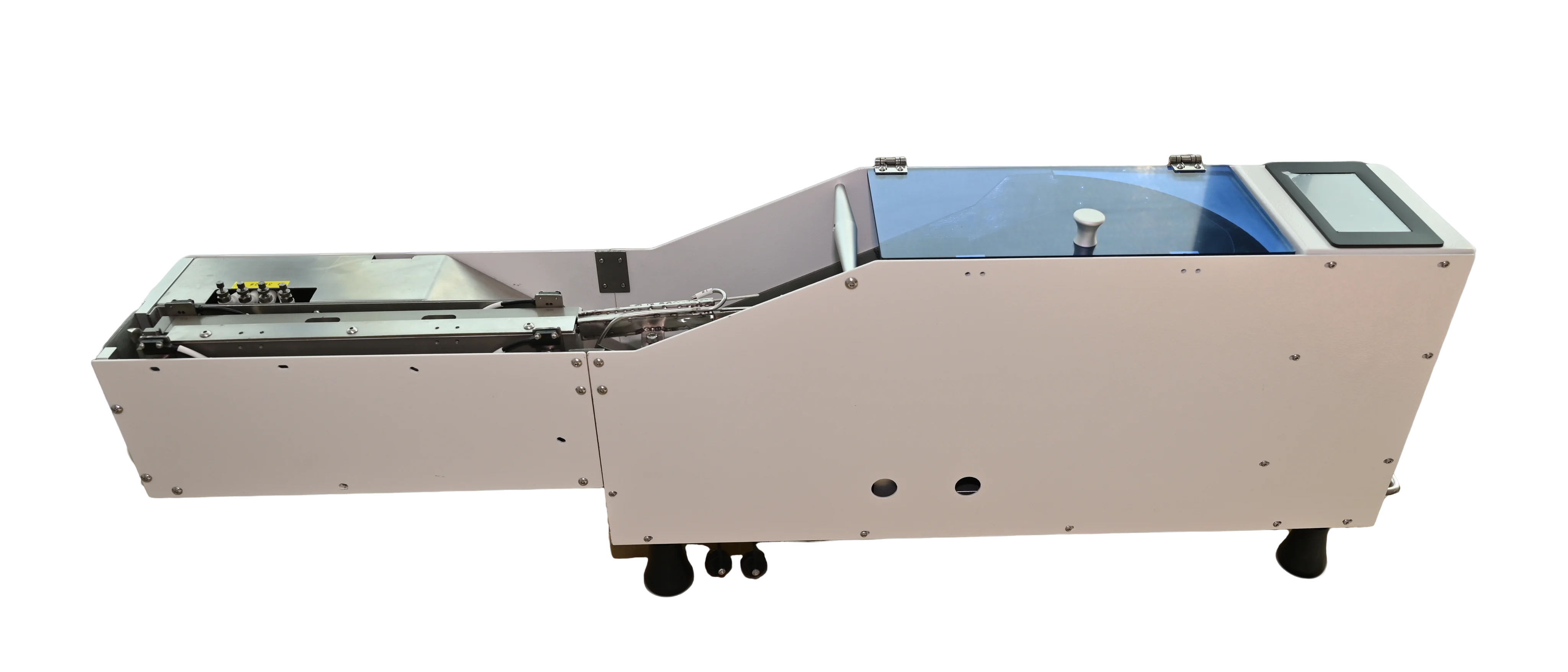

Reciprocating Feeder
The Winseason reciprocating feeder uses belt transfer and vibration to move and screen bulk-loaded components.
Explore Reciprocating Feeder

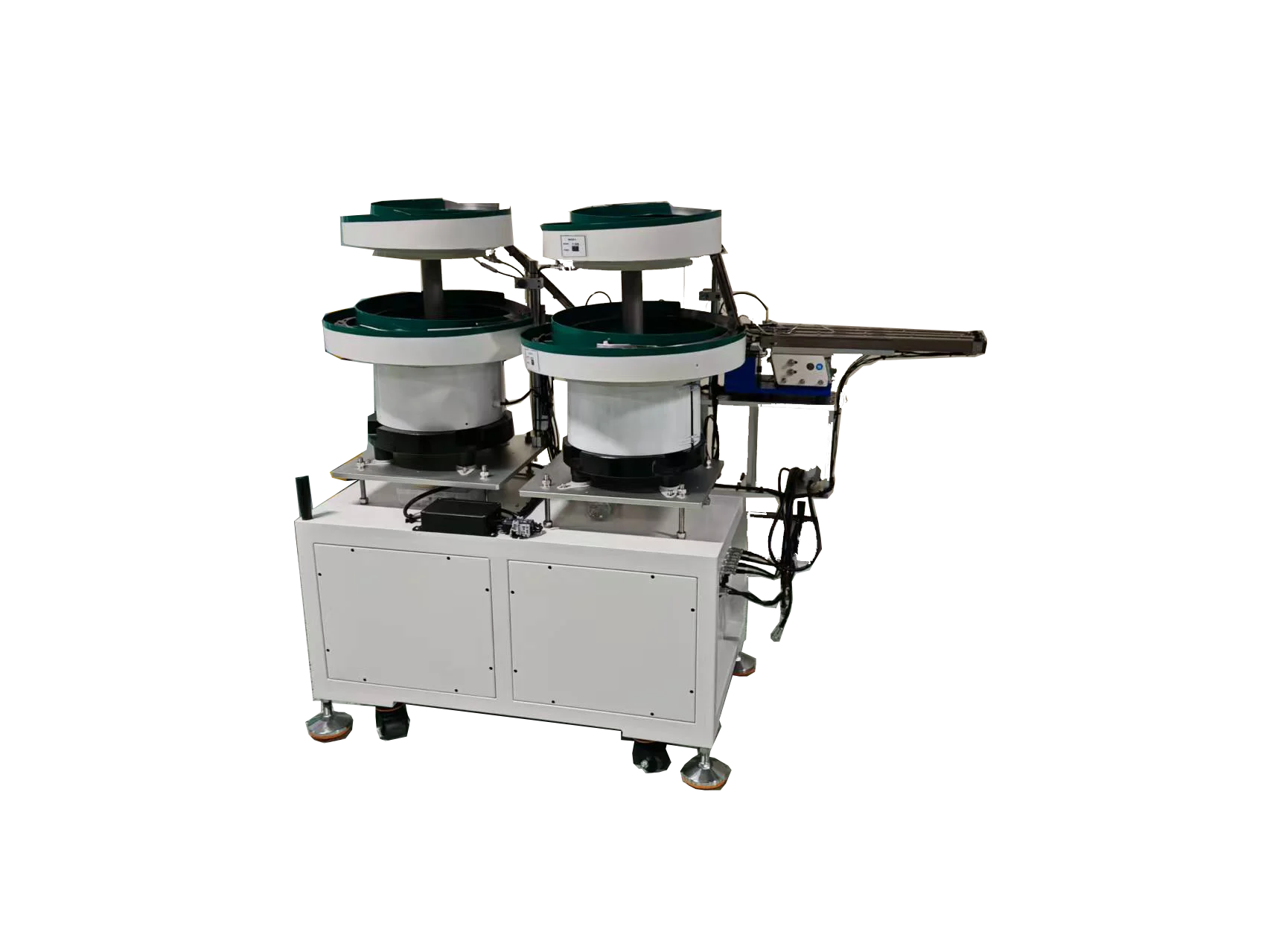

Vibratory Bowl Feeder
The Winseason vibratory bowl feeder organizes randomly oriented bulk components and delivers them to a pickup position in a consistent orientation.
Explore Vibratory Bowl FeederFAQ
Engineering and purchasing questions
What components can the vertical taped-component feeder handle?
The specification table lists electrolytic capacitors, terminals, box capacitors, and similar taped components.
What component sizes are supported?
The listed component-size range is 5×5×5mm-20×20×30mm (length × width × height).
What are the listed feeding speed and accuracy?
The specification table lists a feeding speed or cycle time of 1S and feeding accuracy of ±0.5mm.
Does the feeder support lead bending?
Yes. Lead bending is listed as an optional configuration and should be confirmed for the component and tooling.
How does the feeder communicate with other equipment?
It supports I/O communication through an 8-pin, φ16mm aviation plug.
What utilities does the feeder require?
The listed requirements are DC24V power and 0.4-0.6Mpa air pressure.
